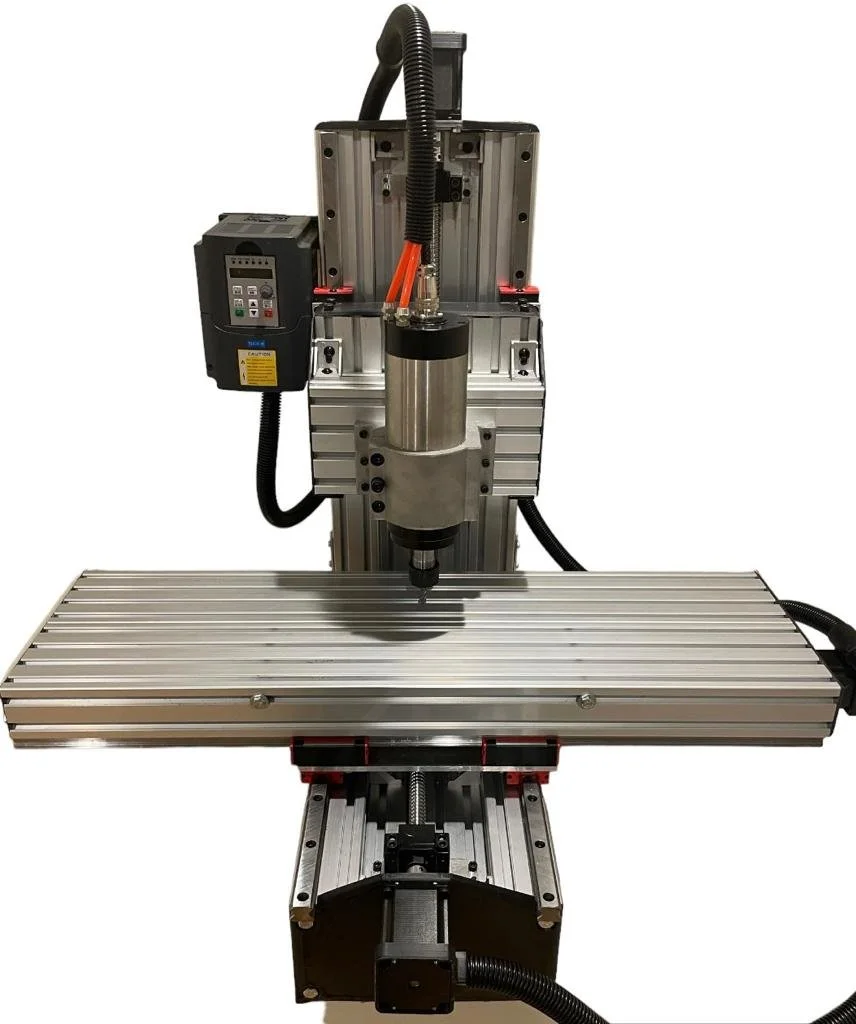

Struct Upright CNC Mill Kit - No Spindle
The StructCNC Mill is a highly rigid and affordable mill that allows any hobbyist, or organization to quickly make functional parts out of advanced materials. The StructCNC was made to expand the practice of CNC machining to a broader group, empowering anyone to create strong, precise, and functional parts.
550mm X Axis Travel
180mm Y Axis Travel
200mm Z Axis Travel
Square Linear Rails for Maximum Rigidity
I-Beam Frame Assembly for Maximum Rigidity
16mm Ballscrews for Linear Motion
T-Rail Spindle Mount Face for Easy Mounting of Your Own Spindle
Spindle Water Cooling Hoses and 110V Pump

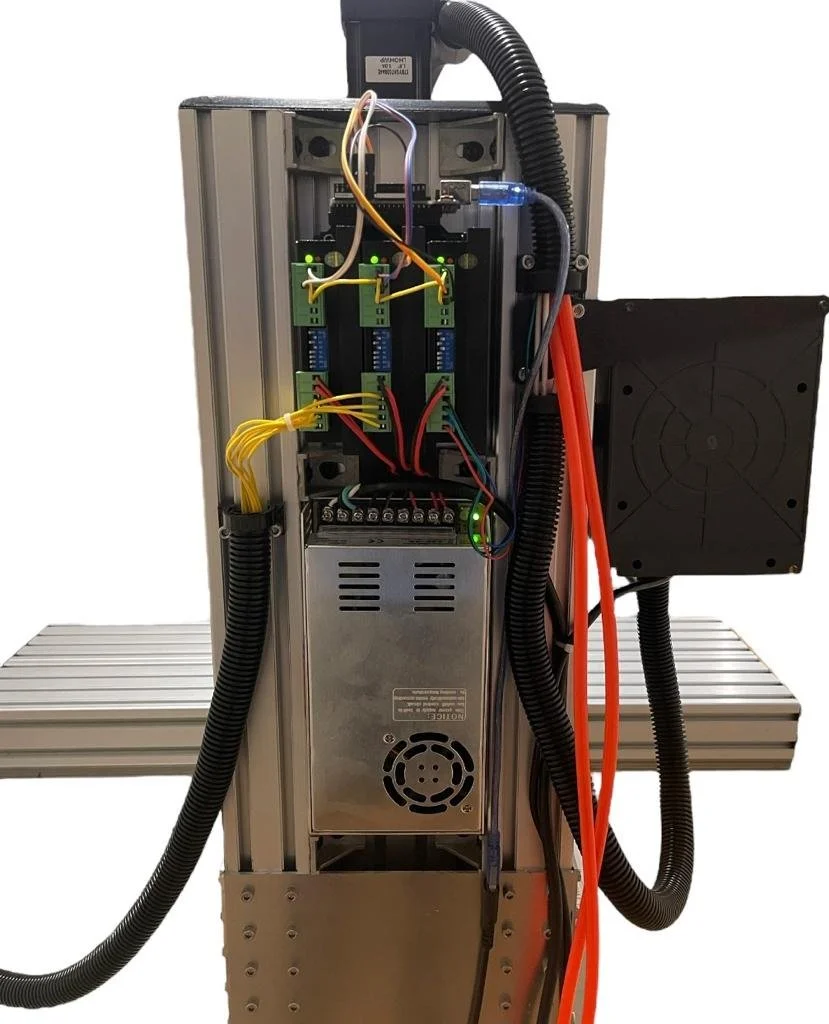

Plastic Tube Enclosed Wiring
2.8Nm Stepper Motors and Microstep Drivers
600W 48v Power Supply
150lbs Weight
Screw and Bolt Construction for Easy Assembly
Squaring Adjustment Ability
Designed for Aluminum parts. Can cut steel with low RPM spindle replacement.
Easily Cut Wood, Polymers, and other materials
